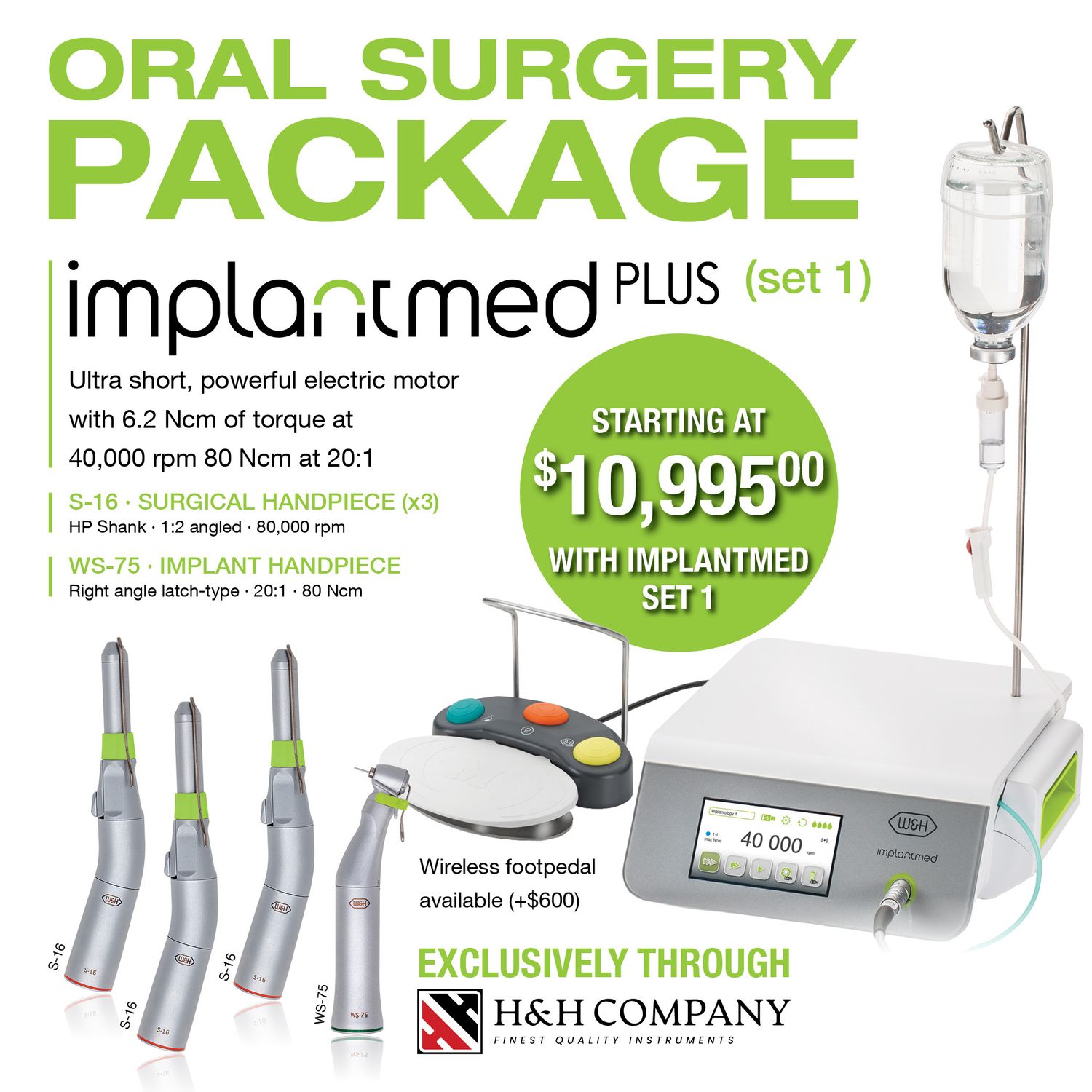

Package Includes:

• Implantmed Plus SI-1015 (Set 1) with Wired Foot Pedal & Motor Cable
  • SKU 90000207 (containing REF 30289000 / 30185000 / 30285000)
• S-16 Handpiece (x3)
  • SKU 30411000
• WS-75
  • SKU 30065000

• F1 Service Oil
  • SKU 10940021

Oil Spray Cap E-Type

• SKU 02038200

3 Free Packs of H&H Carbide OMS Burs

Implantmed knows what surgeons and implantologists need!

The new Implantmed Plus from W&H paired with one of the best 1:2 handpieces on the market makes for an easy day of bone reduction or tooth sectioning!

With the intuitive user interface, color touch screen and glass surface the new Implantmed offers you the highest levels of comfort.

The drive unit is ideal for this purpose with its automatic thread cutter function, automatic torque control and the W&H Osstell ISQ module for measuring the stability of implants, which is available as an accessory.

Your advantages at a glance

• Intuitive user interface
• Secure torque control and measurable implant stability
• New pump design with 90 ml/min coolant to prevent necrosis
• Powerful motor with 6.2 Ncm torque
• Wide speed range: 200 up to 40,000 rpm at the motor
• Precise torque limitation: 5 to 80 Ncm
• Automatic thread cutter function
• Motor with cable, thermo washer disinfectable and sterilizable
• 24 month warranty

Set 1 - Base unit W&H Implantmed Plus SI-1015 SKU: 90000207

Containing REF: Implantmed console SI-1015 120V (30289000) Motor SI-1015 EM-19 1.8m (30185000) Foot pedal SI-1015 S-N2 (30285000)

S-16 Surgical Angled 1:2

Surgical Handpiece with lever chuck Coupling system

1:2, angled, can be dismantled,
for surgical burs and cutters Ø 2.35 mm (also Stryker system), L = 45 mm, external spray, maximum drive speed 40,000 min-1

Indications

e.g.: apical resection, osteotomy, apical trepanning, bone modelling, wisdom teeth extraction/sectioning

The Main features at a glance

• Fatigue-free working thanks to optimal ergonomics
• Durable and robust due to high-quality stainless steel and scratch-resistant coating
• Wide range for all surgical applications
• Can be dismantled for thorough cleaning
• Thermo washer disinfectable and sterilizable

Product SKU
30411000

WS-75 Contra-Angle 20:1

Surgical contra-angle handpiece with push-button Coupling system: ISO 3964 (DIN 13940)

20:1, can be dismantled, single spray, with hexagon chucking system, for surgical burs and cutters with contra-angled shank Ø 2.35 mm, (shank hardness >50 HRC, >520 HV), Kirschner/Meyer internal bur cooling system, maximum drive speed 50,000 min-1

Indications

e.g.: implantation, osteotomy

The Main features at a glance

• Durable and robust due to high-quality stainless steel and scratch-resistant coating
• Fatigue-free working thanks to optimal ergonomics
• Can be dismantled for thorough cleaning
• Thermo washer disinfectable and sterilizable

Works with X-GUIDE

Product SKU

30065000

---

*The video below shows handpieces with comparable disassembly processes to the S-16 handpiece.

---
