The new solution in the Zygoma application from W&H

Unique, easy and safe

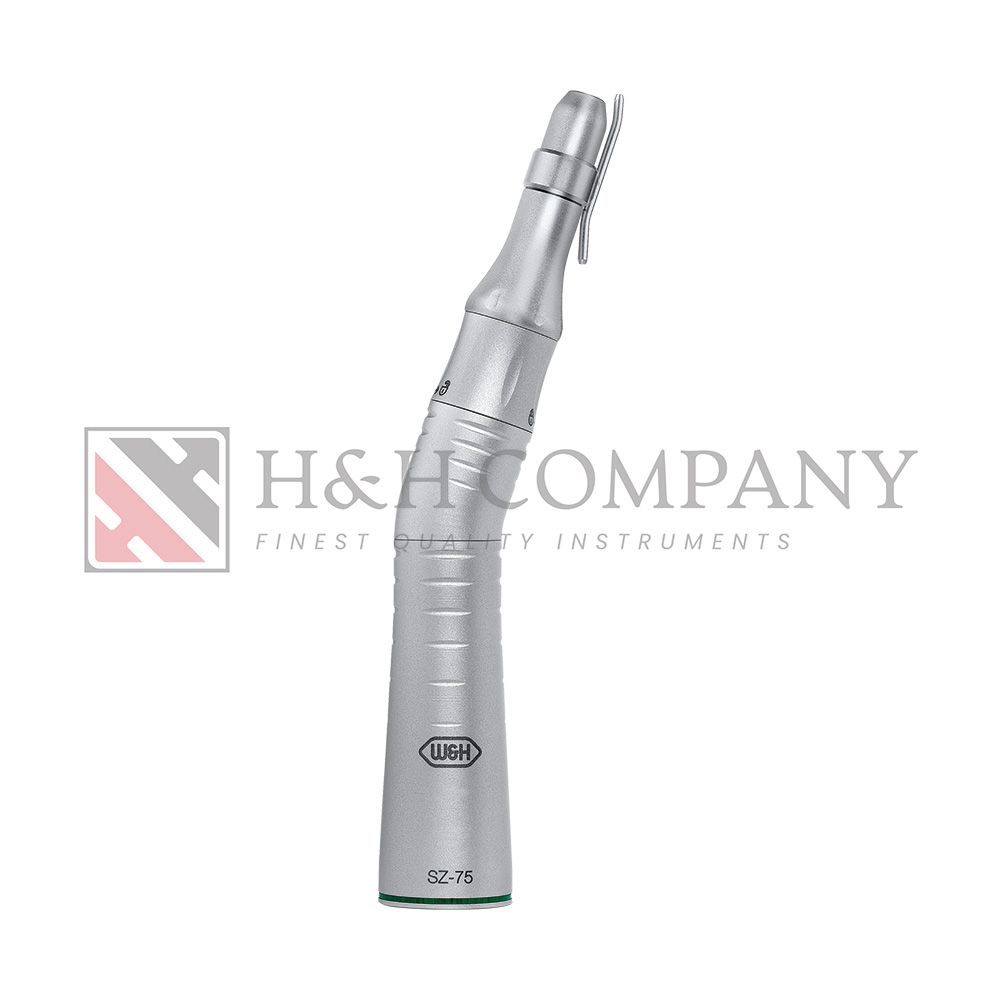

The specially designed SZ-75, 20:1 handpiece for the insertion of Zygoma implants, facilitates the work of the surgeon. The angulation is unique and allows a much better view of the treatment site. So the surgical procedure is also possible to difficult accessible positions

Easy access to treatment site

The angle of the handpiece allows optimal access for difficult interventions in the area of the zygomatic bone.

High application security

The world‘s only 20:1 handpiece with contra-angle chucking system ensures application security at high concentricity.

Fatigue-free working

The ergonomic design of the handpiece ensures long and fatigue-free working.

Efficient cooling

The spray exits near the instrument‘s area of activity and cools the operating site extremely efficiently.

Technical data - Zygoma Type SZ-75

Transmission ratio: 20:1

Coupling system: ISO 3964 (DIN 13940)

External cooling system: single

Chucking system: twist chuck system

Rotary instruments: Zygoma burs, surgical burs and cutters with contra-angle shank Ø 2,35 mm

Maximum drive speed: 50,000 min1

Can be dismantled: yes

Indications, e.g.: Implantation of Zygoma implants osteotomy
